SmartSYNC: Real-time API security and requests

SmartSYNC: Real-time API security and requests

SmartSYNC provides an API interface to run data flows in real-time and return the results to an external system.

Using the API

Enabling the API

To enable the API you need to go to the Admin > Account page within your SmartSYNC account. Toggle the API Access > Enable? checkbox to be ticked.

You will also see your API Key and Secret on this page, please note those for future reference. You will use them to secure your requests.

Making a simple GET request

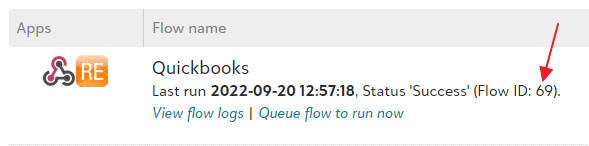

There will be cases where you will wish to run the data flow in SmartSYNC without passing in any further information. Examples could be that you have changed data in an external system and want SmartSYNC to check immediately for the change. To send such a request you need the Flow ID which you can find on the Flows page under the flow (Flow ID: ...):


You will then construct the request as a URL:
  1. https://[domain_of_your_SmartSYNC_installation]/apis/execute.php?flow=69&key=...&ts=9348579834&check=...
  2. i.e. https://smartsync.org/apis/execute.php?flow=69&key=sdfjh435hh345454&ts=9348579834&check=f9094fca352acbf08fac376875f445fb
In this URL there are could of arguments to note:
  1. ts: the current timestamp (number of seconds since midnight on the 1 Jan 1970)
  2. key: your API Key (found in the Admin > Account page in your SmartSYNC account)
  3. check: a checksum to secure your request.
    1. Sort your request parameters in alphabetical order (but exclude check) i.e. flow, key, ts
    2. Make a string from the parameter values in this same sorted order separated by '|' i.e. 69|sdfjh435hh345454|9348579834
    3. Append your API Secret after another '|' character (found in the Admin > Account page in your SmartSYNC account) i.e. 69|sdfjh435hh345454|9348579834|dfhfdjsghs
    4. Take the MD5 value of this string and supply it as the check value so md5('69|sdfjh435hh345454|9348579834|dfhfdjsghs') i.e. f9094fca352acbf08fac376875f445fb

Making a POST request (with data)

Most of the time you use the API you will want to supply data to the SmartSYNC flow. To enable this your flow must start with a compatible event i.e. a Webhook > Incoming Webhook event step with default settings.

You will send data as JSON content (application/json content type) within the body of the POST request. You will also include the post body in your md5 calculation when creating the 'check' argument for your request by appending it before step 3 of the above check calculation. In the above example this would mean check would be the value of: md5('69|sdfjh435hh345454|9348579834|[YOUR JSON]|dfhfdjsghs')

Returned data

The data returned is also in JSON format. The response code will indicate the status:
  1. 200: Successful run
  2. 400: Error occurred during run
  3. 500: An unexpected server error
The returned data will provide further information:
  1. success: true/false
  2. error:
    1. code: the response code
    2. msg: details of the error
  3. output: array of return objects (output of final step of flow)

Example:

{
  "success": true,
  "output": [
    {
      "id": "280",
      "address": {
        "id": "757",
        "address_lines": "410 17th Street",
        "city": "Denver",
        "constituent_id": "280",
        "country": "United States",
        "county": "Denver",
        "do_not_mail": false,
        "formatted_address": "410 17th Street\r\nDenver, CO  80202-4402",
        "postal_code": "80202-4402",
        "preferred": true,
        "state": "CO",
        "type": "Home"
      },
      "age": 54,
      "birthdate": {
        "d": 14,
        "m": 3,
        "y": 1961
      },
      "date_added": "1999-05-20T18:57:55Z",
      "date_modified": "2016-07-14T04:13:51.2167803Z",
      "deceased": false,
      "email": {
        "id": "283",
        "address": "robertcarloshernandez@gmail.com",
        "do_not_email": false,
        "inactive": false,
        "primary": false,
        "type": "Email"
      },
      "first": "Robert",
      "fundraiser_status": "Active",
      "gender": "Male",
      "gives_anonymously": false,
      "inactive": false,
      "is_constituent": true,
      "last": "Hernandez",
      "lookup_id": "96",
      "middle": "Carlos",
      "name": "Dr. Robert C. Hernandez",
      "online_presence": {
        "id": "811",
        "inactive": false,
        "primary": false,
        "type": "Web address"
      },
      "phone": {
        "id": "95",
        "do_not_call": false,
        "inactive": false,
        "number": "(303)-997-3301",
        "primary": false,
        "type": "Home"
      },
      "preferred_name": "Bob",
      "spouse": {
        "id": "410",
        "first": "Wendy",
        "last": "Hernandez",
        "is_head_of_household": false
      },
      "title": "Dr.",
      "type": "Individual",
      "import_id": "1234-56-789101"
    }
  ]
}

Notes

  1. Execution time is limited to 60 seconds. To use this fully though you may need to ensure your calling system does not timeout by extending the timeout settings on the GET or POST request.
  2. If an error occurs examine the returned 'error' object to find details
  3. The output is an array as you may have more than one output from the final step
  4. When calculating a POST based checksum ensure the JSON has any leading or trailing whitespace and ALL return and newline characters removed
  5. The SmartSYNC flow used does not need to be enabled within SmartSYNC. This allows you to have the flow run ONLY when called via the API
